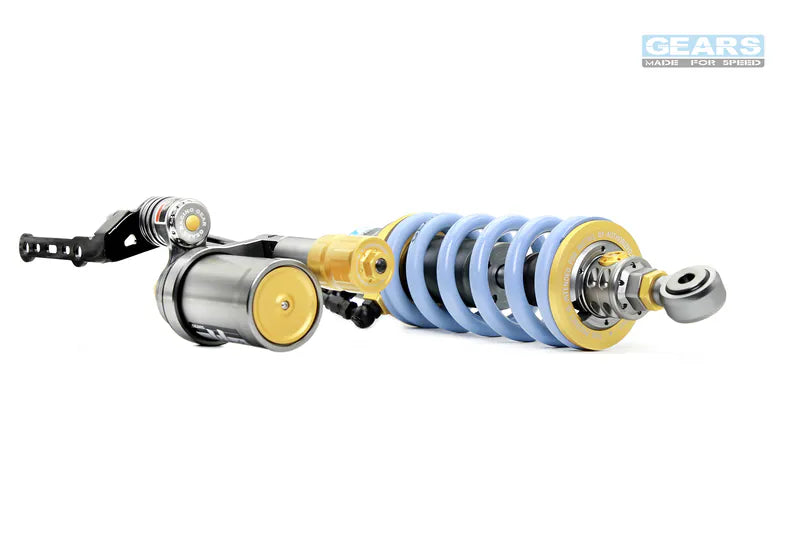

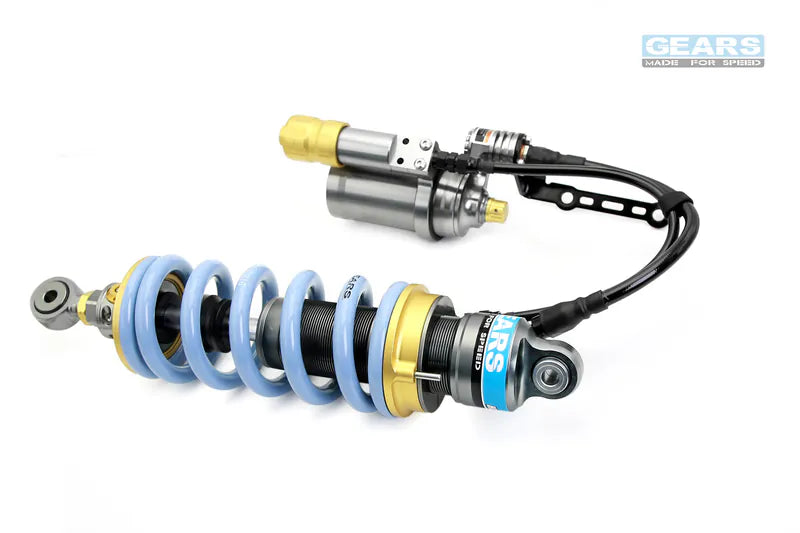

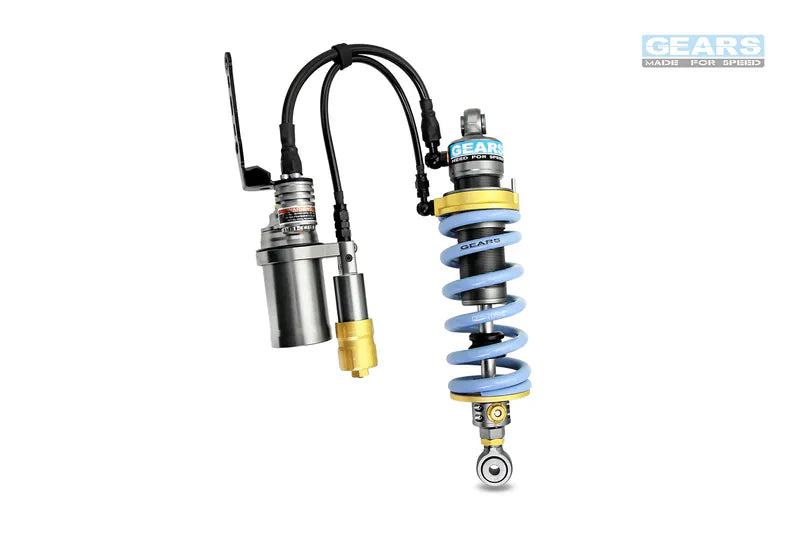

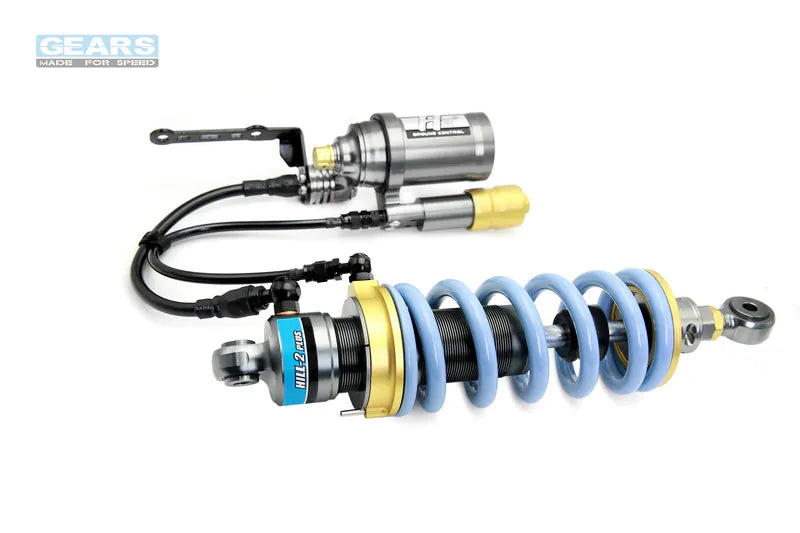

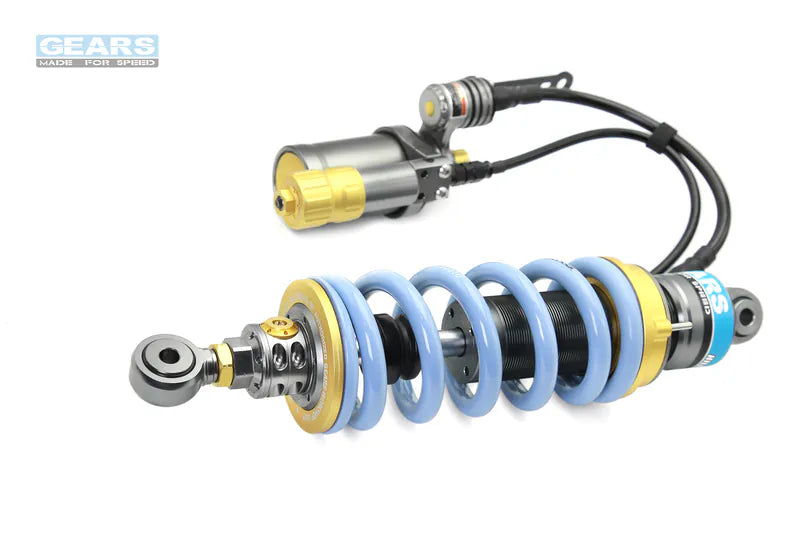

CFMOTO 450MT (24~)/IBEX 450 (25~) H2P Rear Suspension
Important Notice:
We will fulfill the item as soon as it becomes available. Estimated wait time at 4-8 weeks.
Description
HILL – 2 Plus Series
● Monotube - Oil - Gas Separation Design
The shock absorption cylinder adopts the monotube with oil and gas separation design.
Monotube is excellent for heat dissipation, effectively reducing the working temperature of the damping oil. Large-size piston is the basic platform for wide-range damping force setting, and oil-gas separation is to protect the damping oil from cavitation and to stabilize the damping force.
● Wide Range Piston Valve
High-sensitivity wide range piston valve, smooth oil-passage design with large piston helps torque variation, so that helps to reduce the simple harmonic motion's damping force at low, medium and high speed shock movement.
● Way Damping Adjustability
Adjustable damping allows for 15 clicks of rebound and 10 clicks of compression, so this feature gives rider adjustability to fine tune the shock according to road or track conditions.
● Adjustable Spring Preload + Pre-set Gas Pressure
Spring preload adjustability provides the user the ability to set their own ideal riding preference.
By actuarial built-in high-pressure inert gas that widen the setting of spring compression's range with easy adjustment.
● External Bi-Horizontal-Gas-Reservoir
Patented external bi-horizontal-gas-reservoir system provided more space for fluid volume and more surface for heat dissipation that also stabilized the damping oil temperature.
● Adjustable Spring Preload
Spring preload adjustability provides the user the ability to set their own ideal riding preference.
● Height Adjustability*
Some bikes allow for height adjusting (*Maximum 5mm).
● Warranty
All EV shocks are covered by 12 month limited warranty since the original date of purchase.
